QD MOUNTS AND CAMERA STRAPS
QD MOUNTS AND CAMERA STRAPS
We now offer the QD mounts in three types:

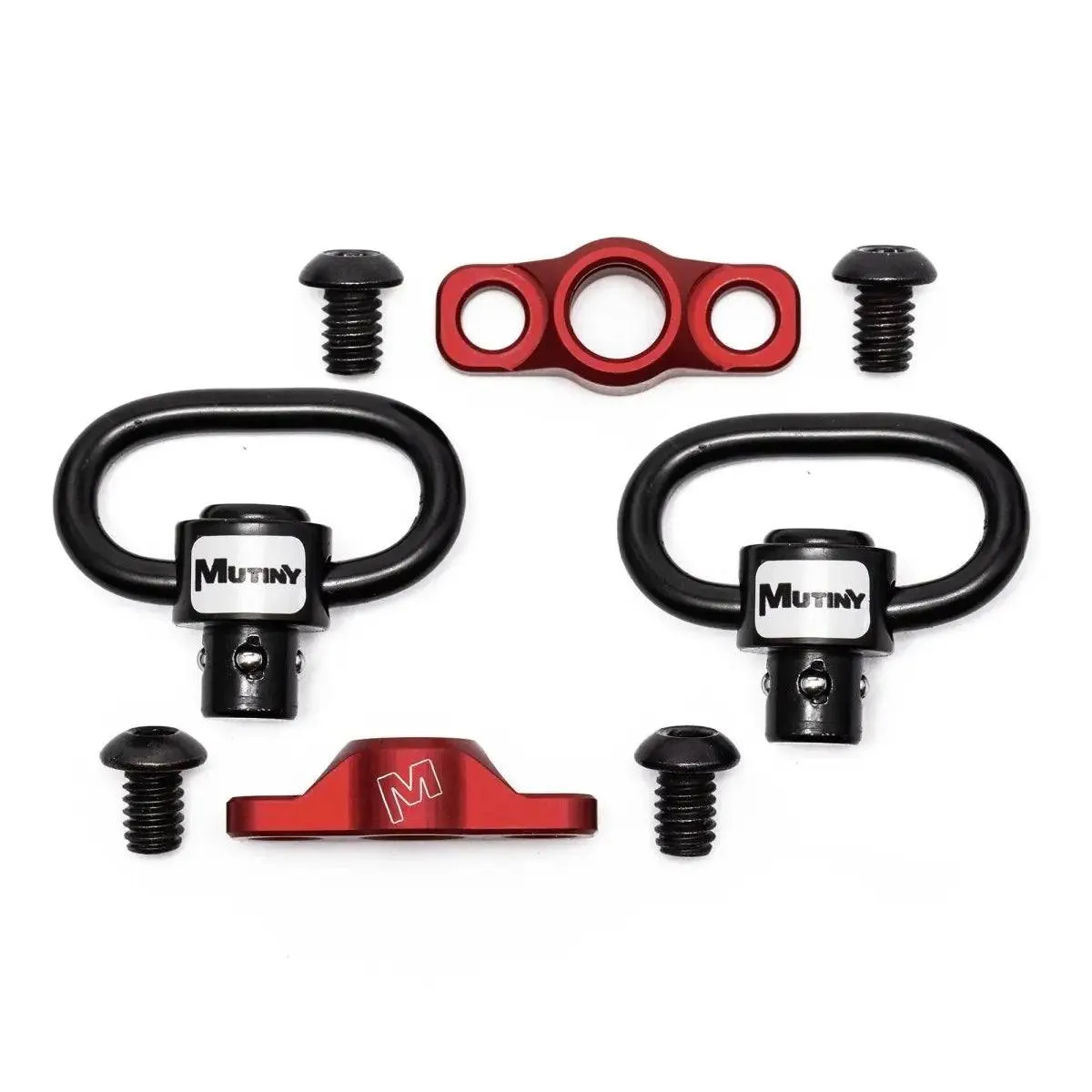

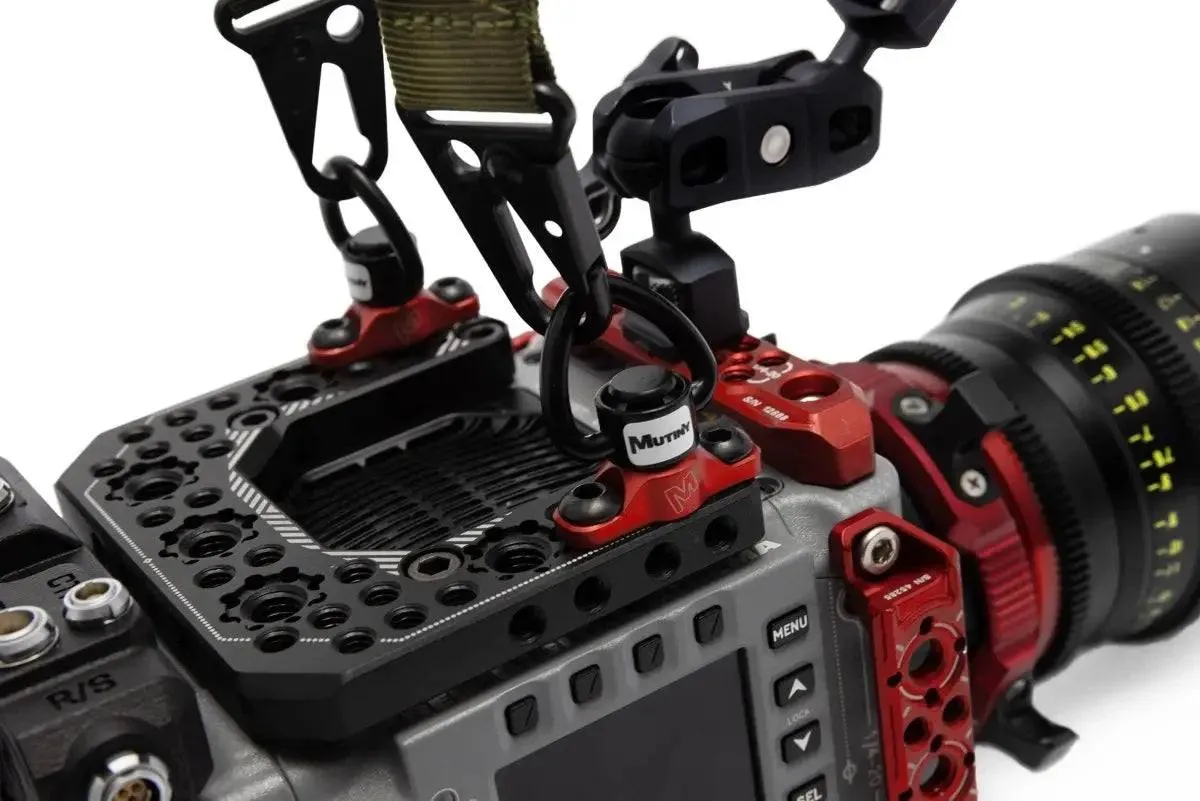

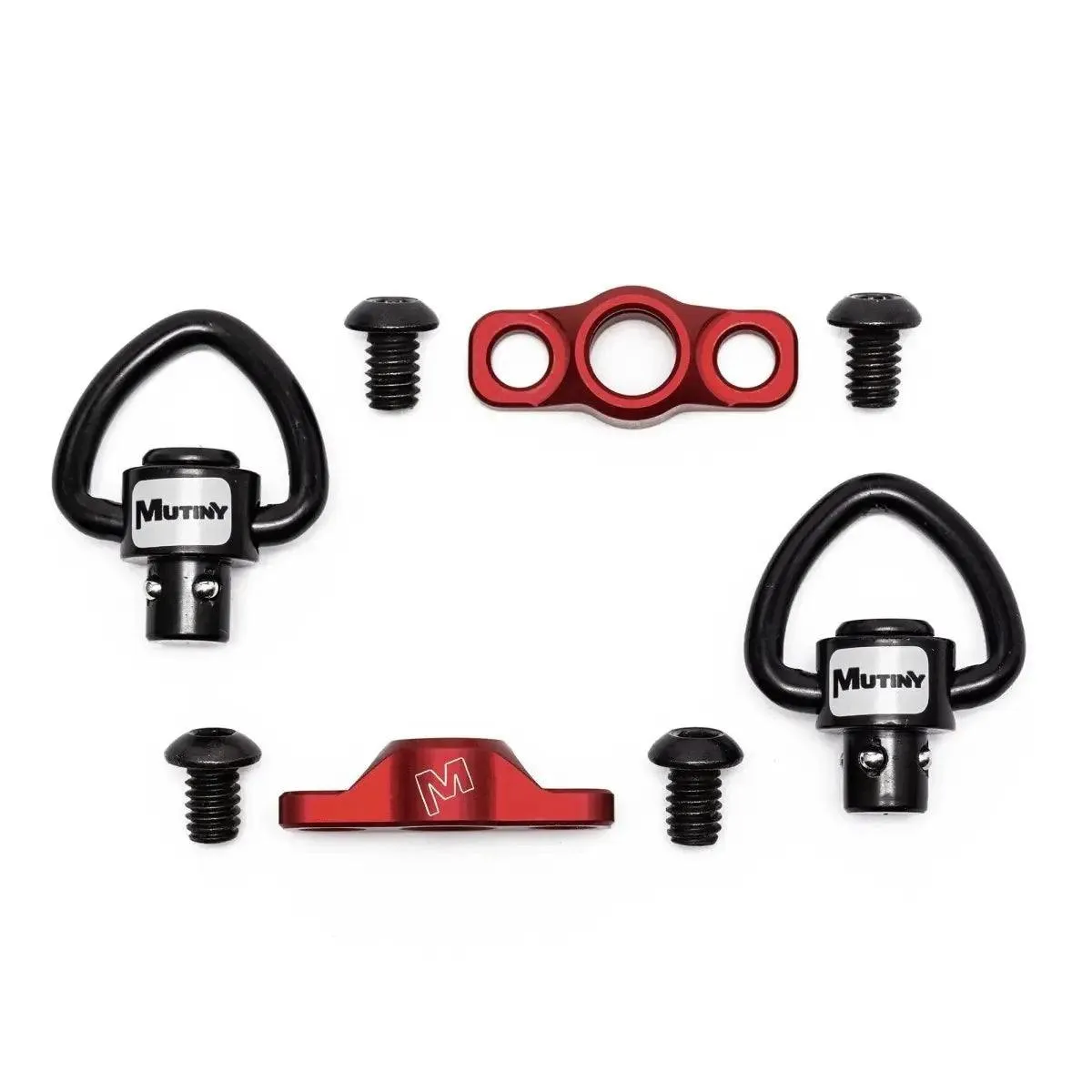

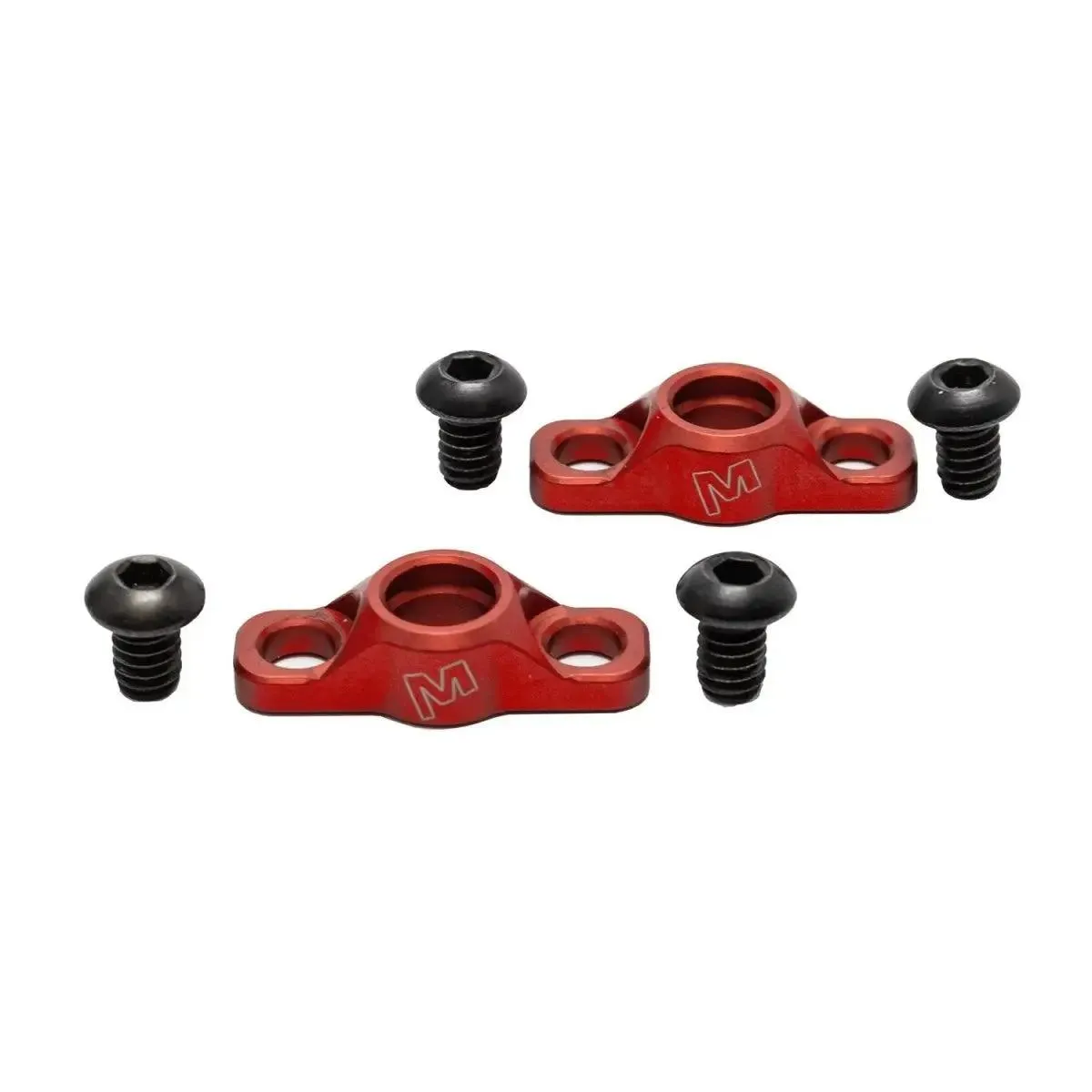

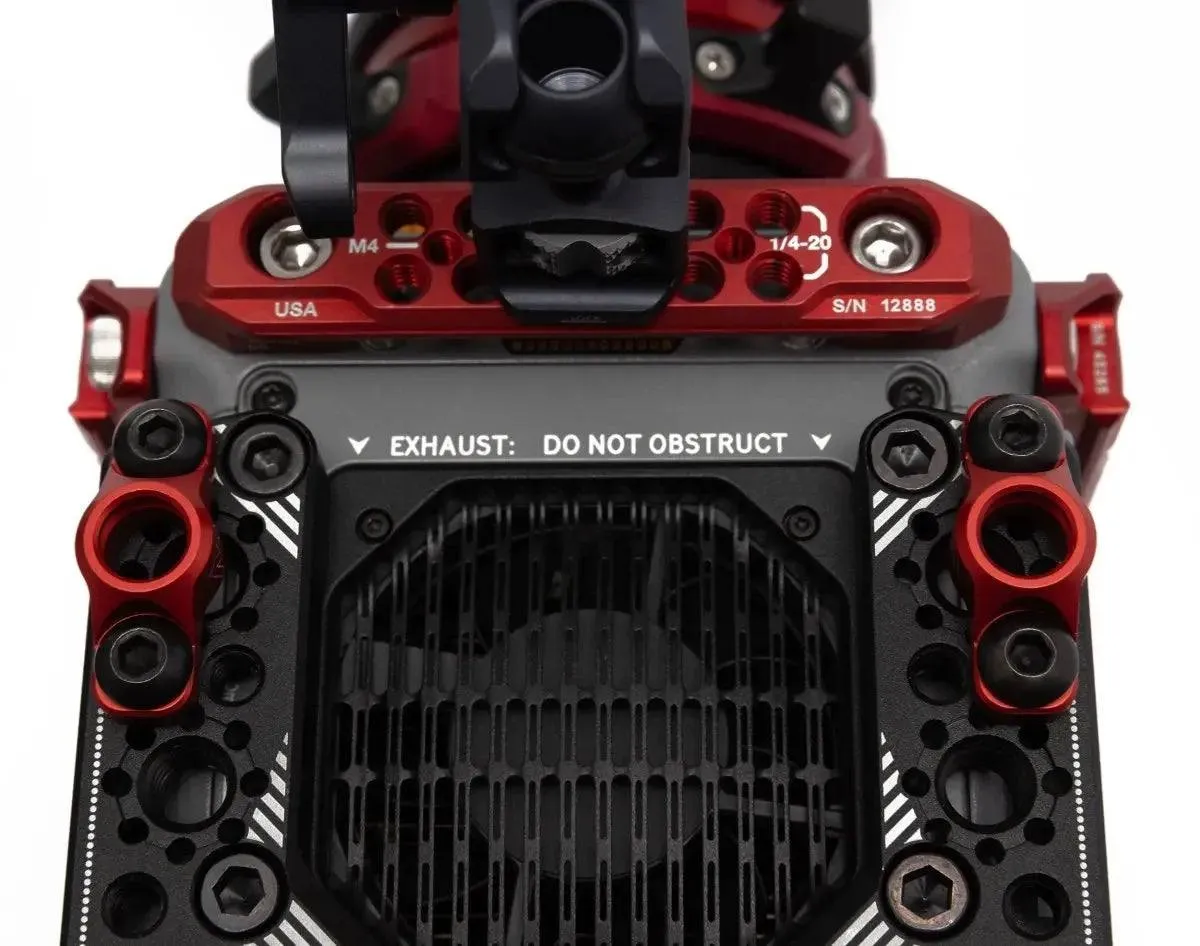

Type 1: QD/S RED anodized. S = Standard. Made for 1" on center holes like Bright Tangerine, RED, Arri, etc. Use a ruler to determine the hole spacing where you want to mount these. It should be 1" from the center of one hole to the center of the other hole.

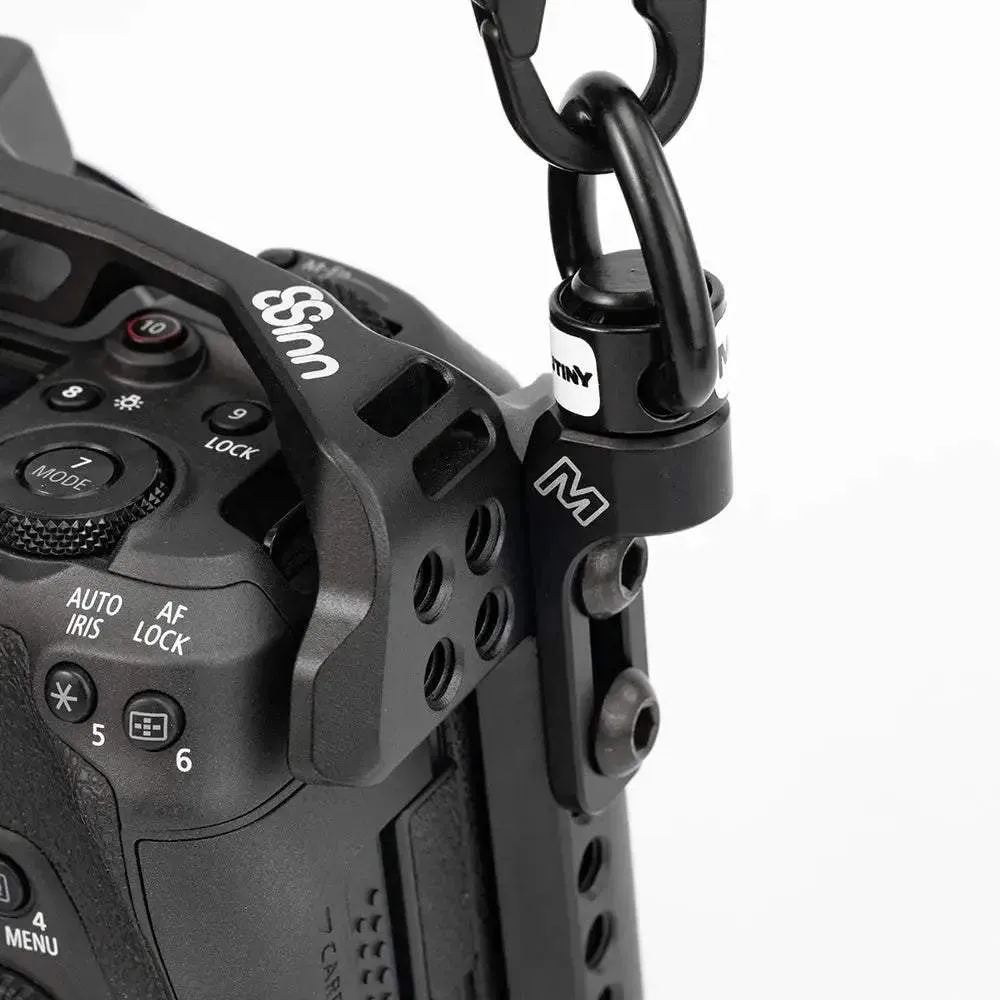

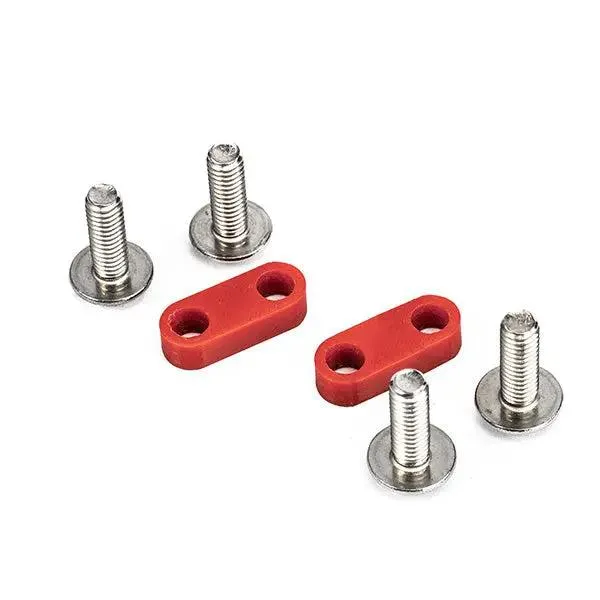

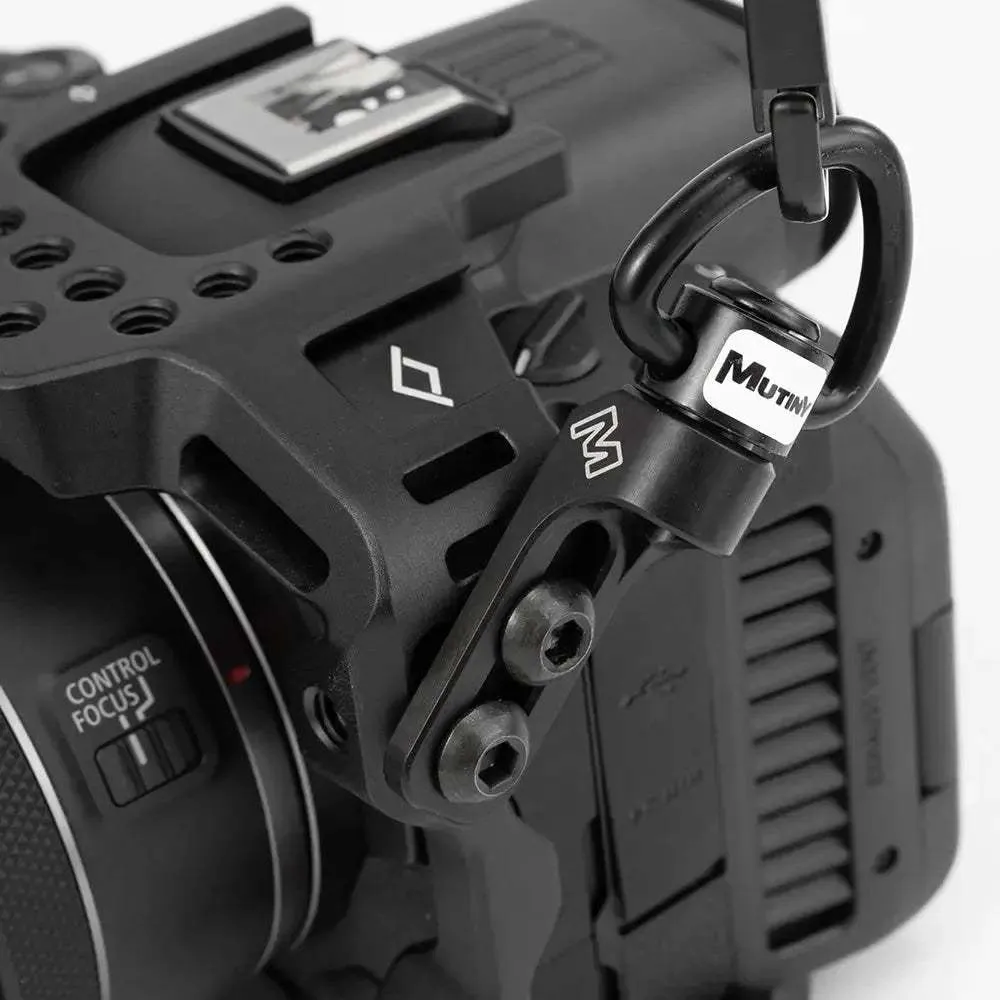

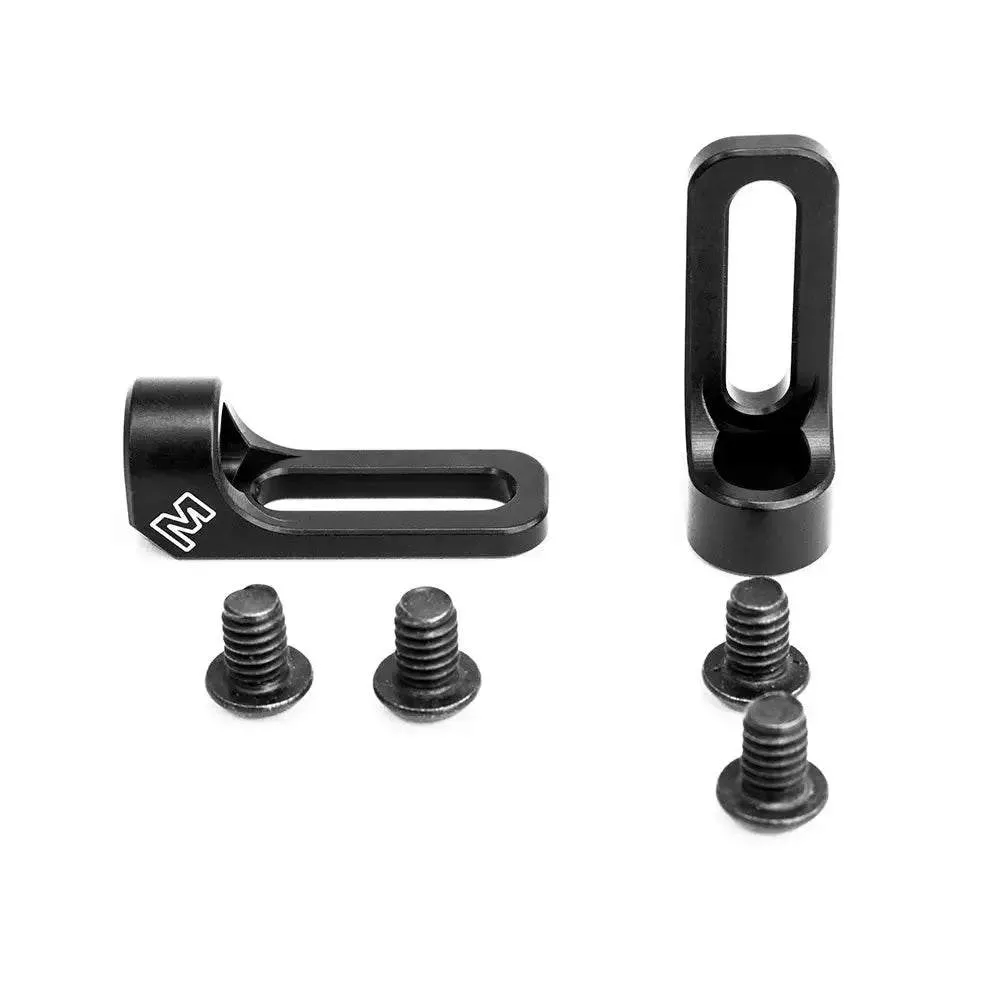

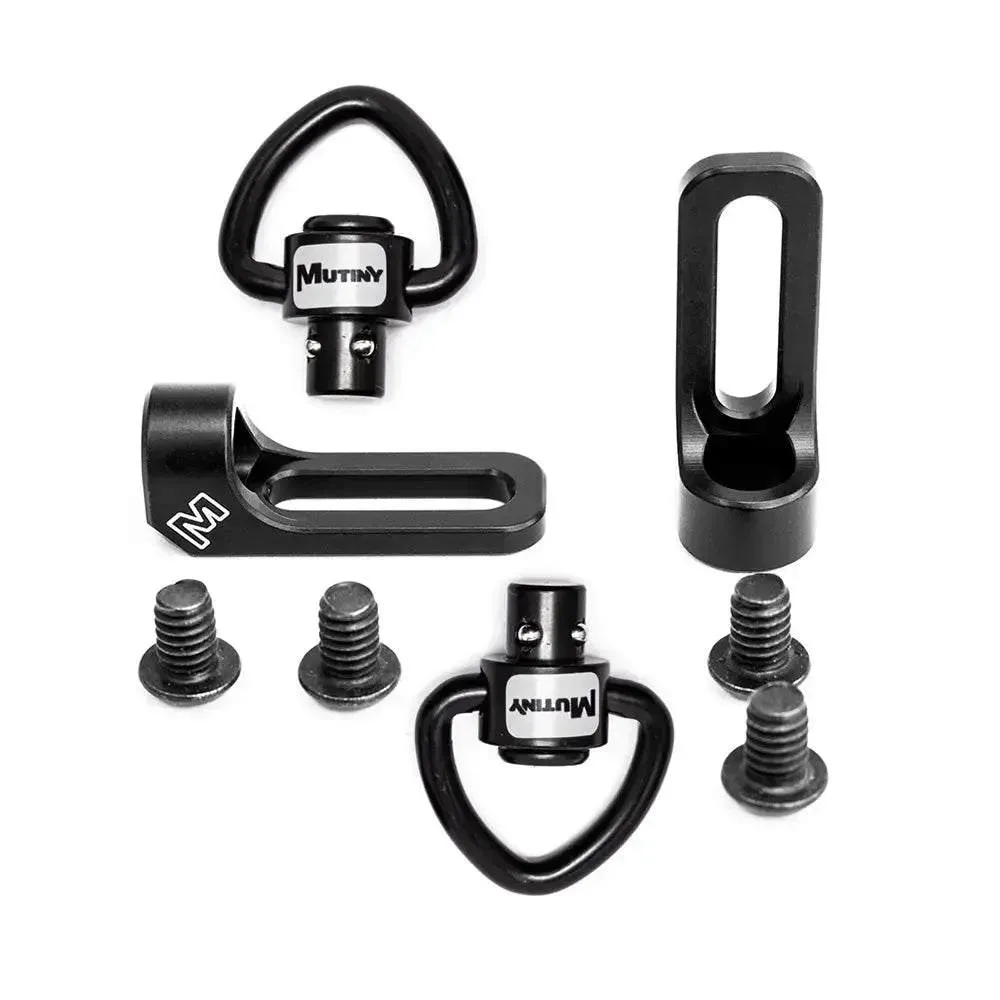

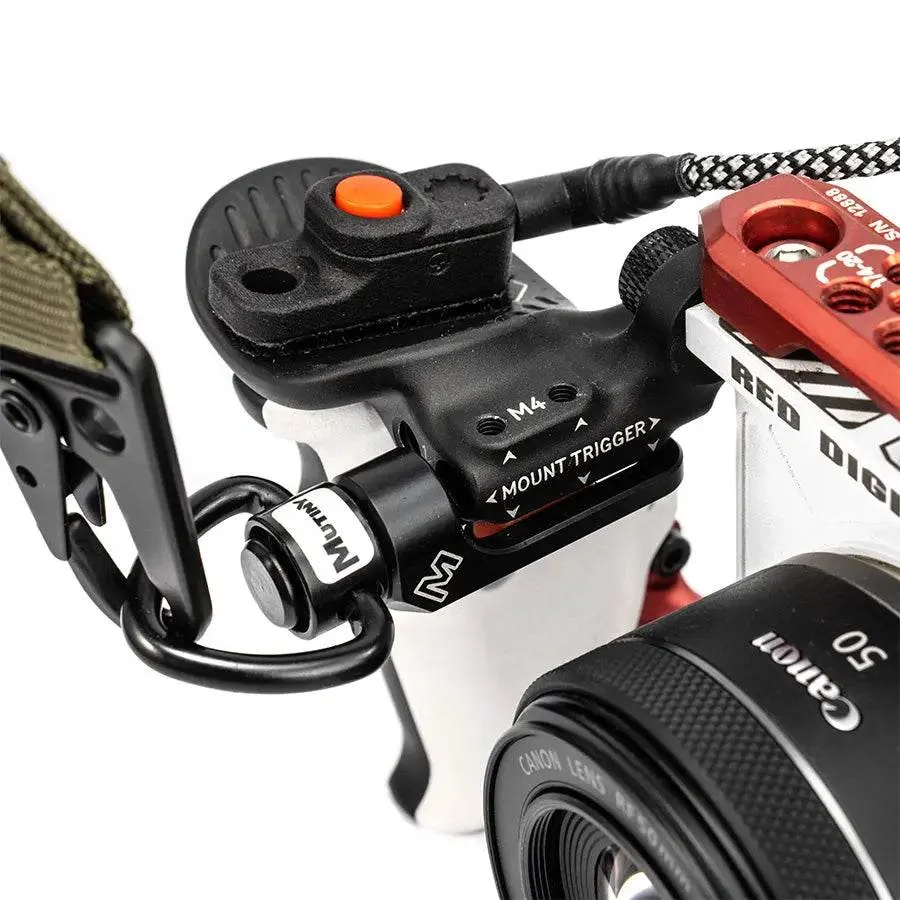

Type 2: QD/NS BLACK anodized . NS = Non-Standard. Made for holes that are between 20mm (under is okay) on center holes like Tilta, SmallRig, Nitze, and other brands. Use a ruler to determine the hole spacing of where you want to mount these. If it's 20mm or under this is the QD you want. There is an optional kit for GDU Atlas handle owners that allows you to mount these via the M4 holes on the handles.
Type 3: QD/NS Solid Brass. NS = Non-Standard. Made for holes that are between 20mm (under is okay) on center holes like Tilta, SmallRig, Nitze, and other brands. Use a ruler to determine the hole spacing of where you want to mount these. If it's 20mm or under this is the QD you want. There is an optional kit for GDU Atlas handle owners that allows you to mount these via the M4 holes on the handles.

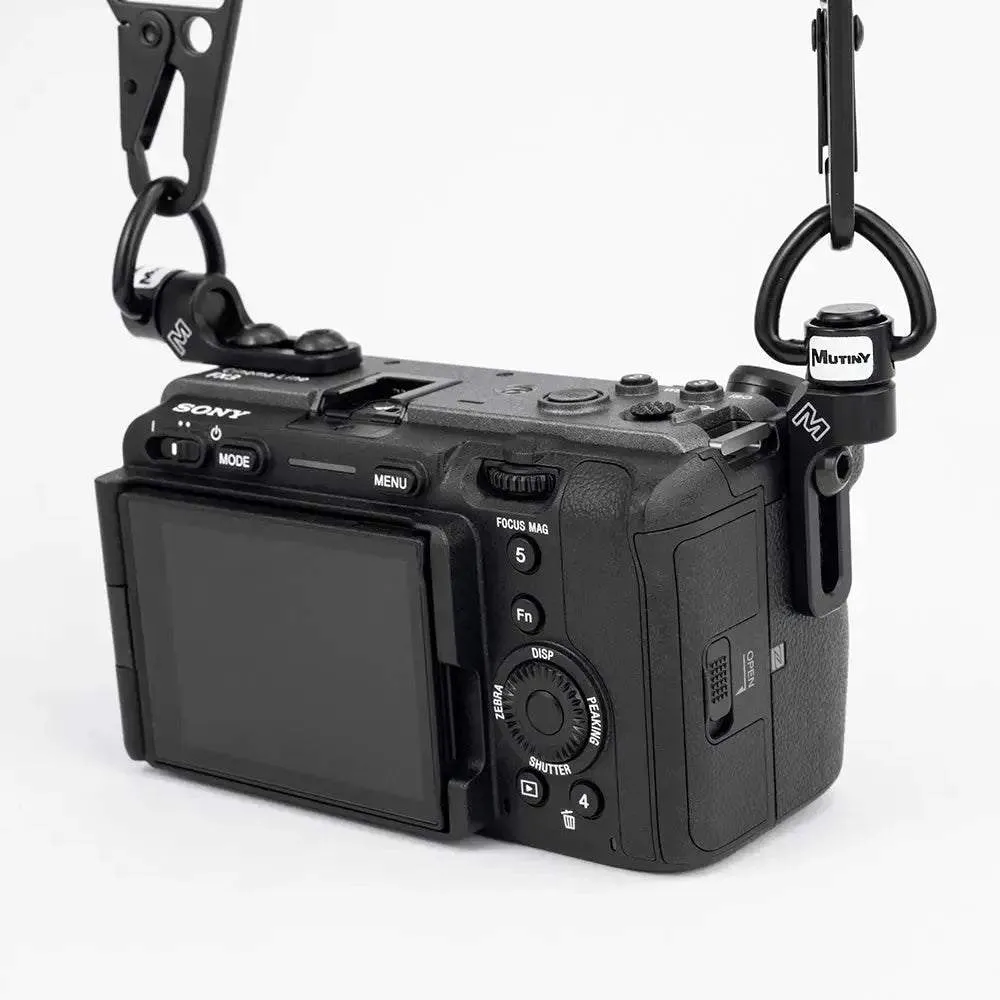

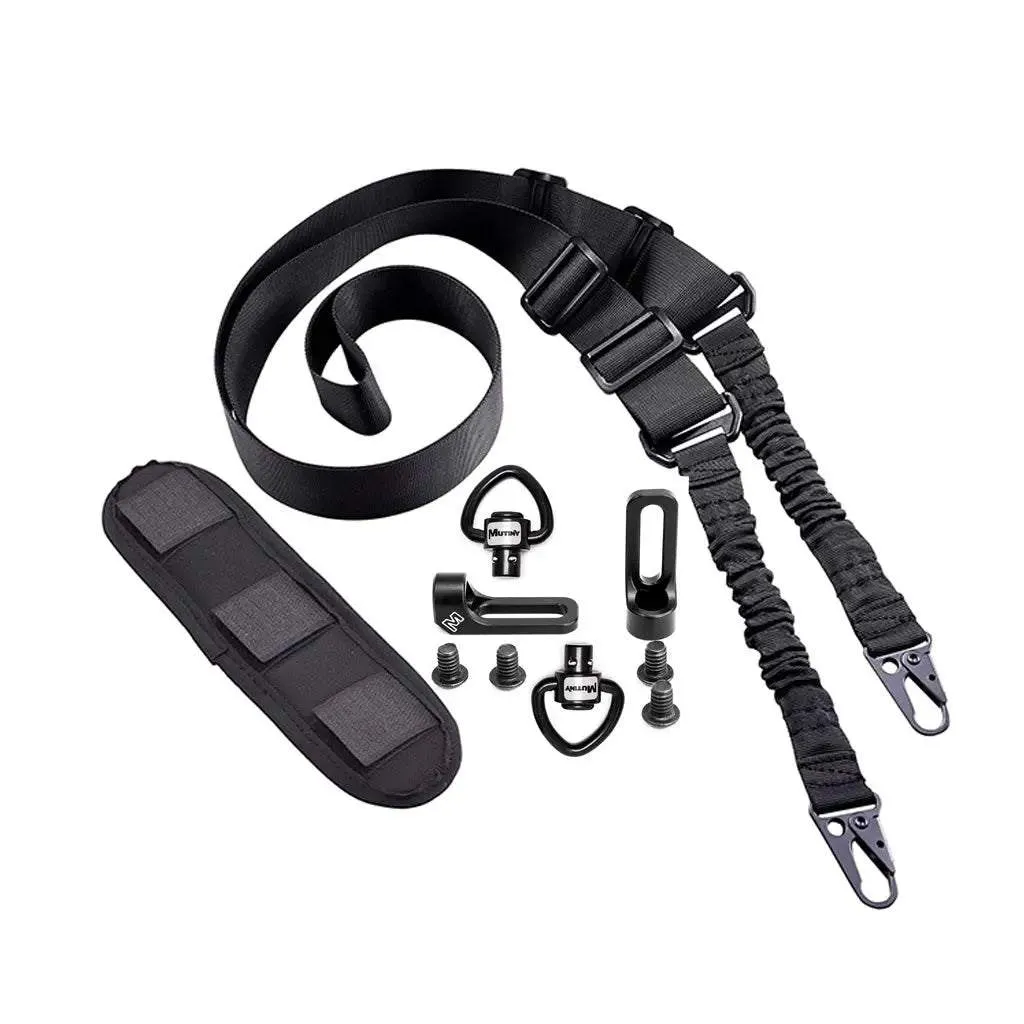

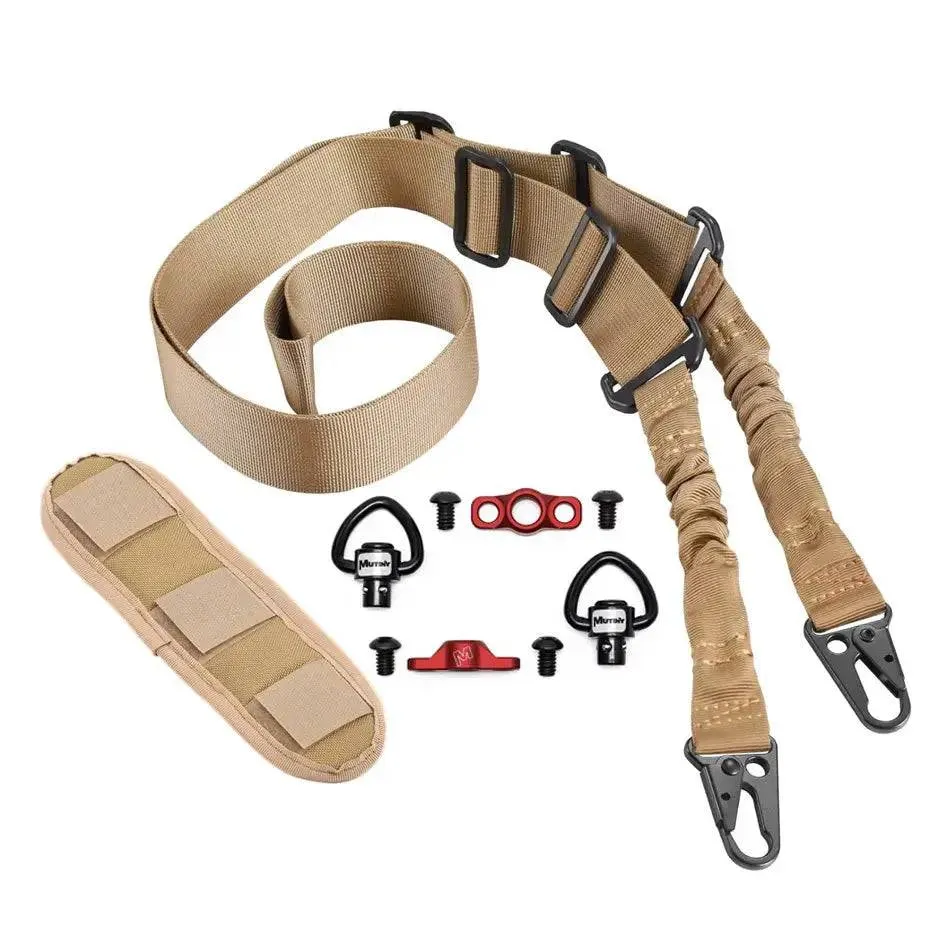

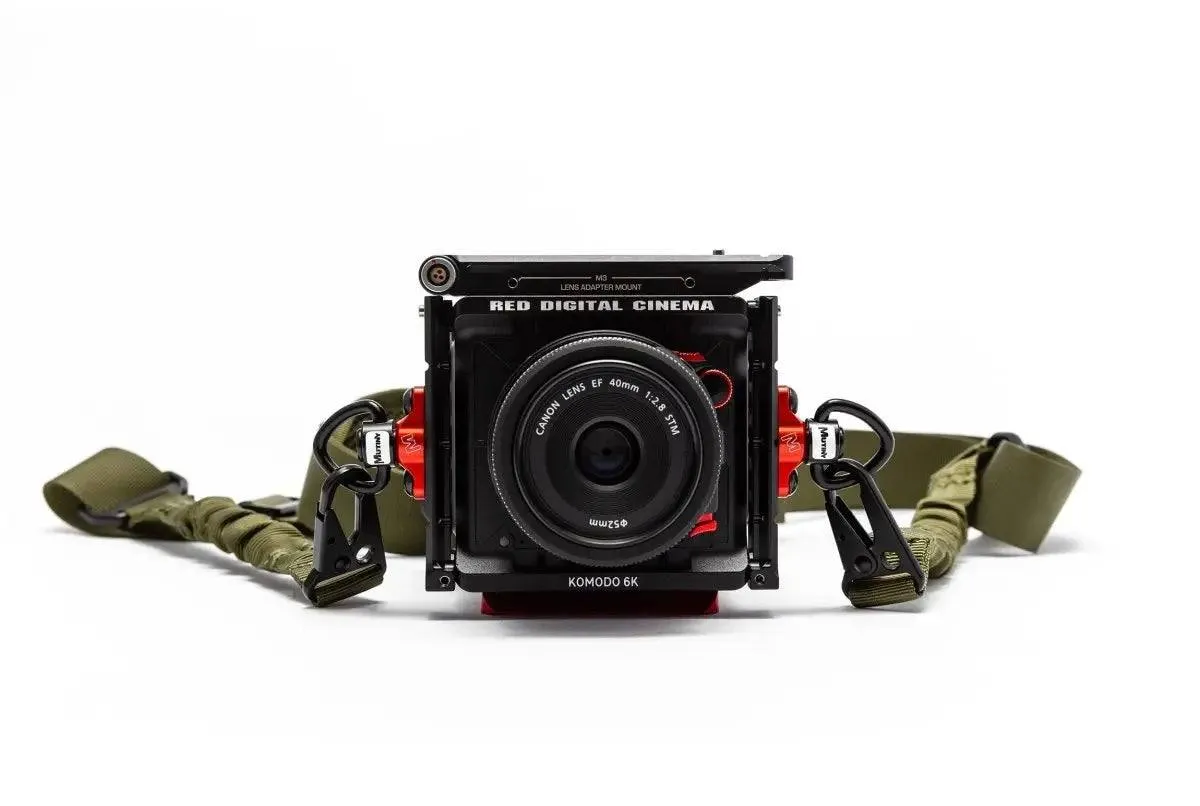

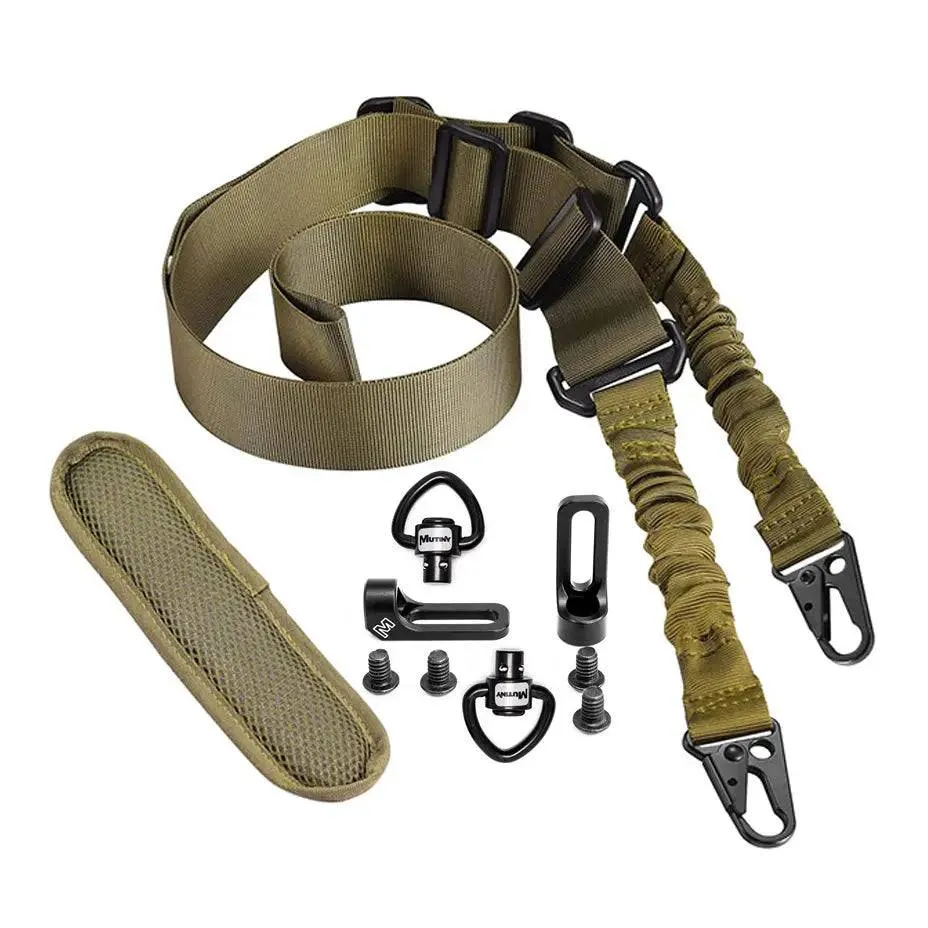

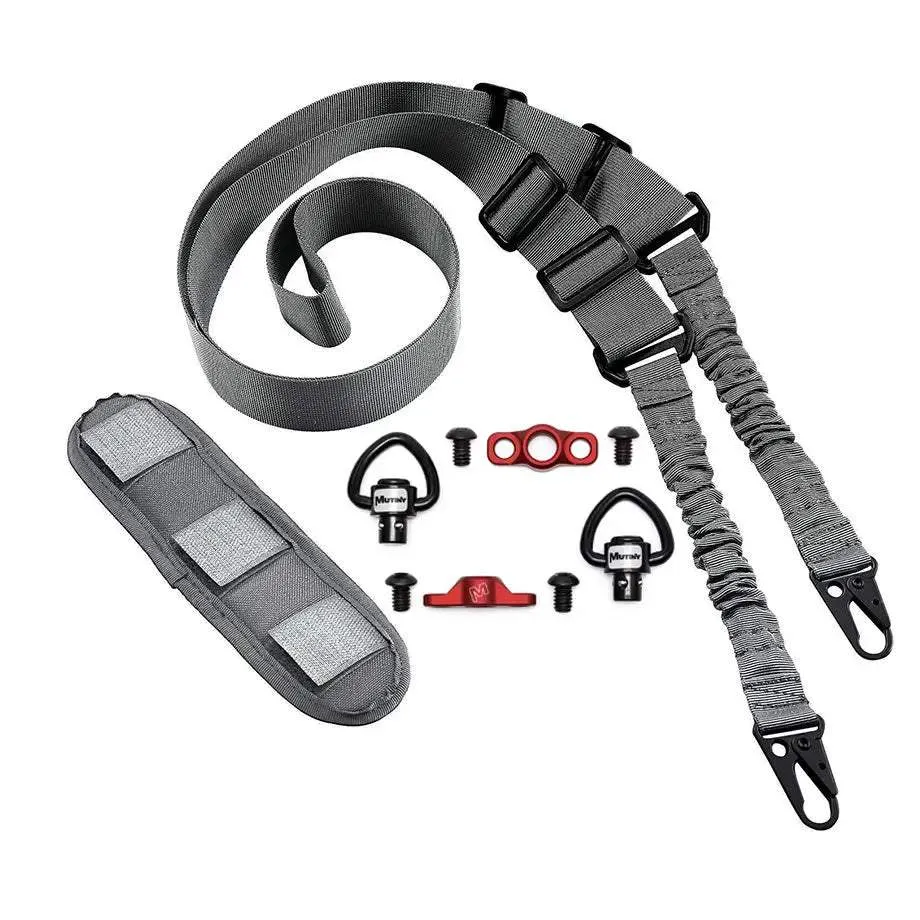

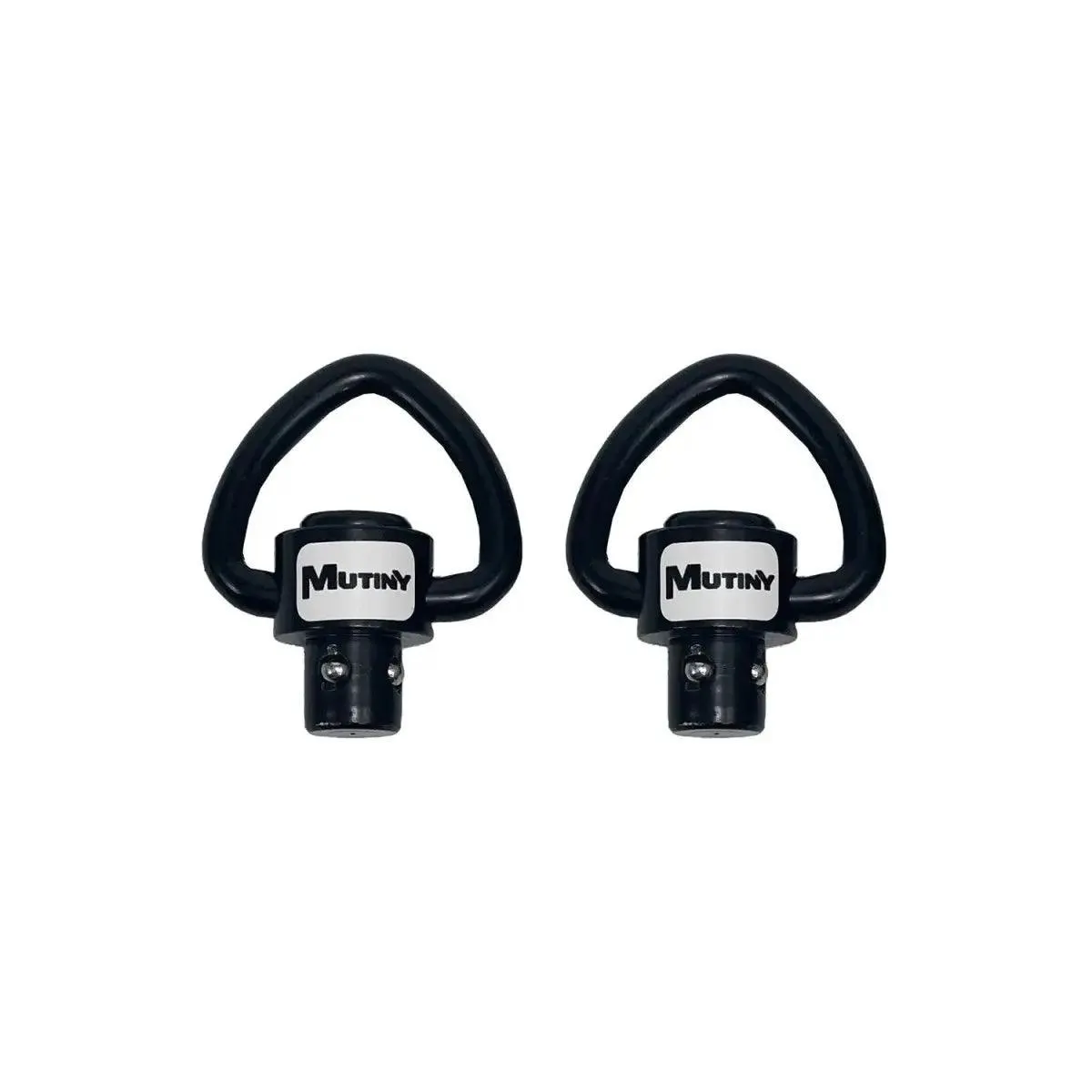

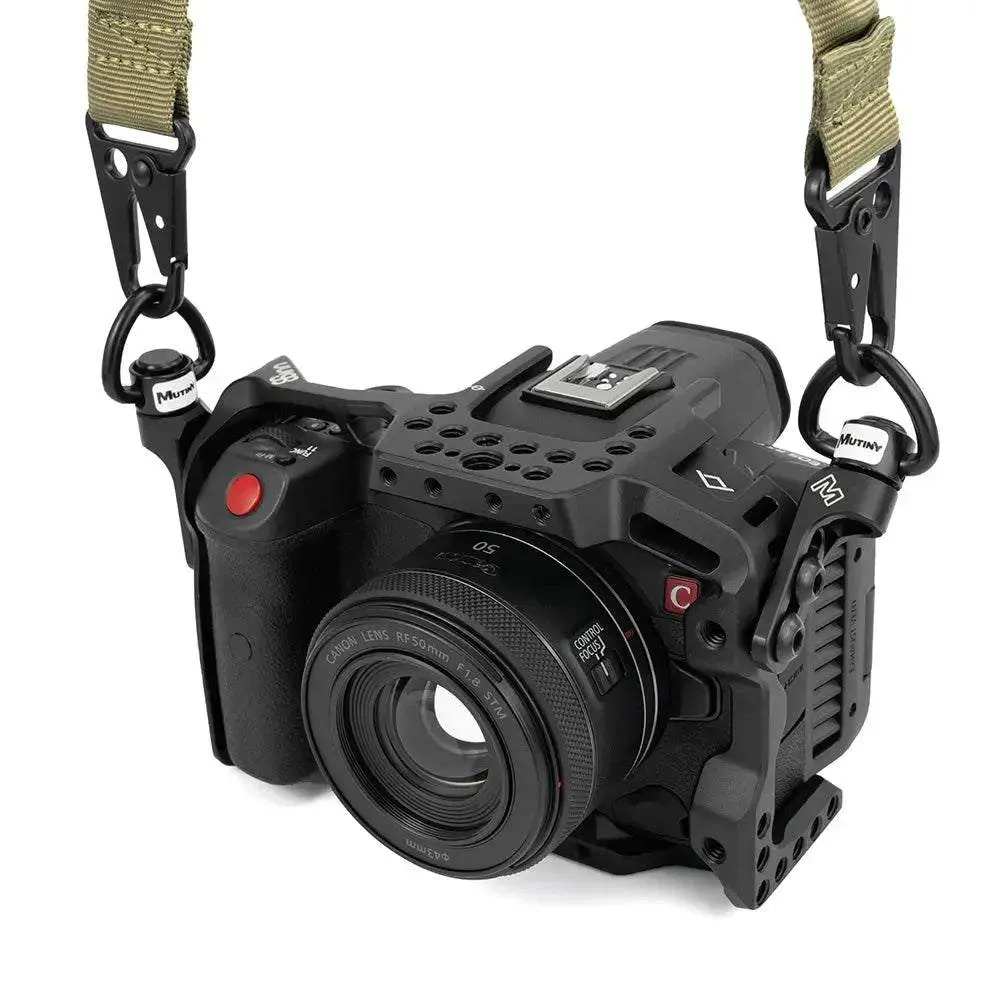

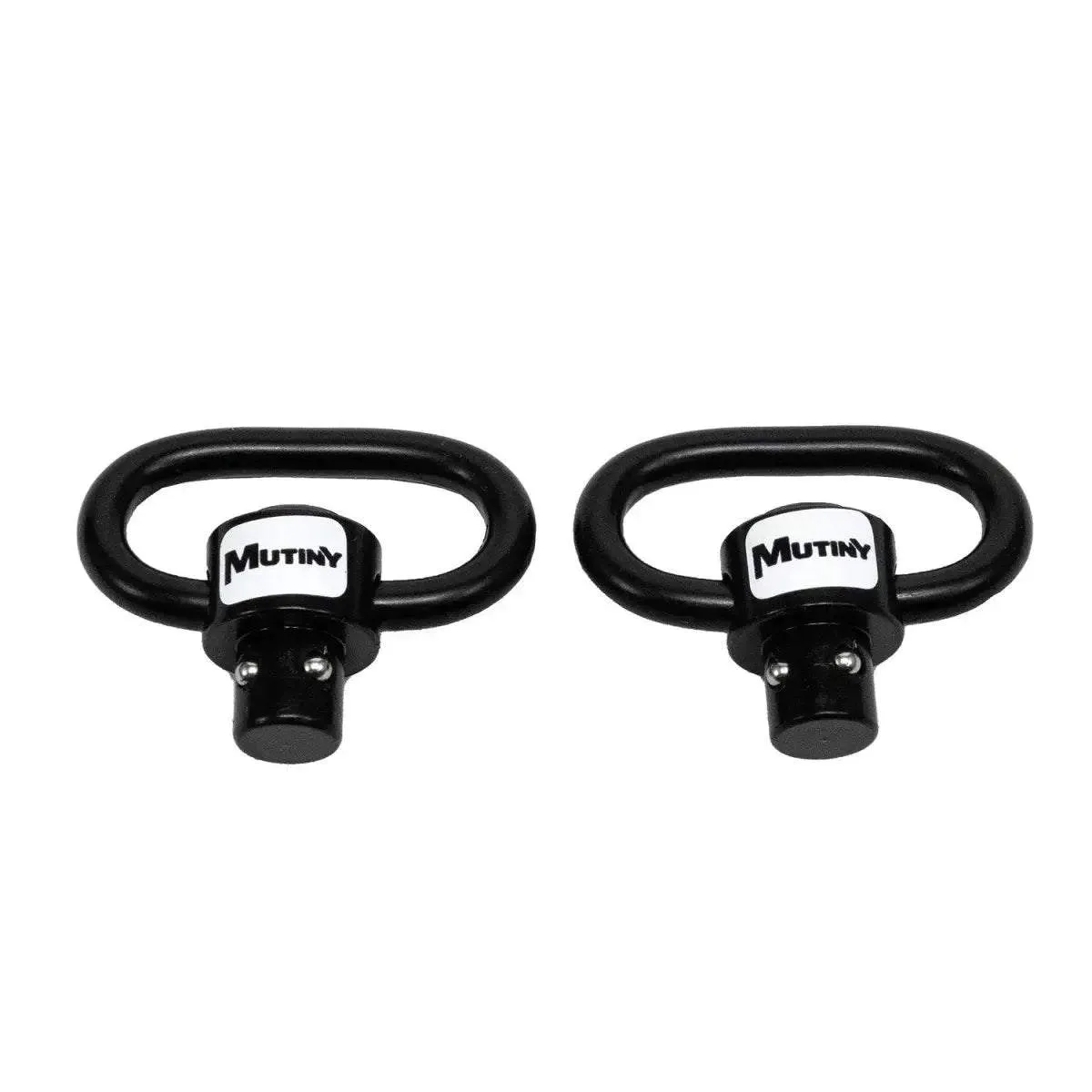

Description: QD sling swivel set (comes with 2) with a push button to quickly detach and attach your camera strap with confidence. QD's are rated at a load weight of over 100lbs each so they can easily handle your camera build or rigging needs. QD attachments have been used by still photography camera plates for years as a quick and solid way to add or remove a camera strap as well as for rigging a camera with rope or cable. Each set of mounts comes with 4x 1/4-20 mounting screws.
Specifications:
Measurements:
BOLT-ON QD/S RED: mounting plates are 1.4" (37.10mm) long x 0.6" (15.21mm) wide x 0.3" (9.66mm) height with the mounting holes being 1" on center standard.
BOLT-ON QD/NS BLACK and BRASS: mounting plates are 1.7" (43.26mm) long xx 0.6" (15.21mm) wide x 0.6" (16.81mm) height with the mounting holes being 20mm on center (non-standard) or less.
Weight: 2x QD mounts with 4x screws weights 0.77oz (22g)
These are made to QD standards.
