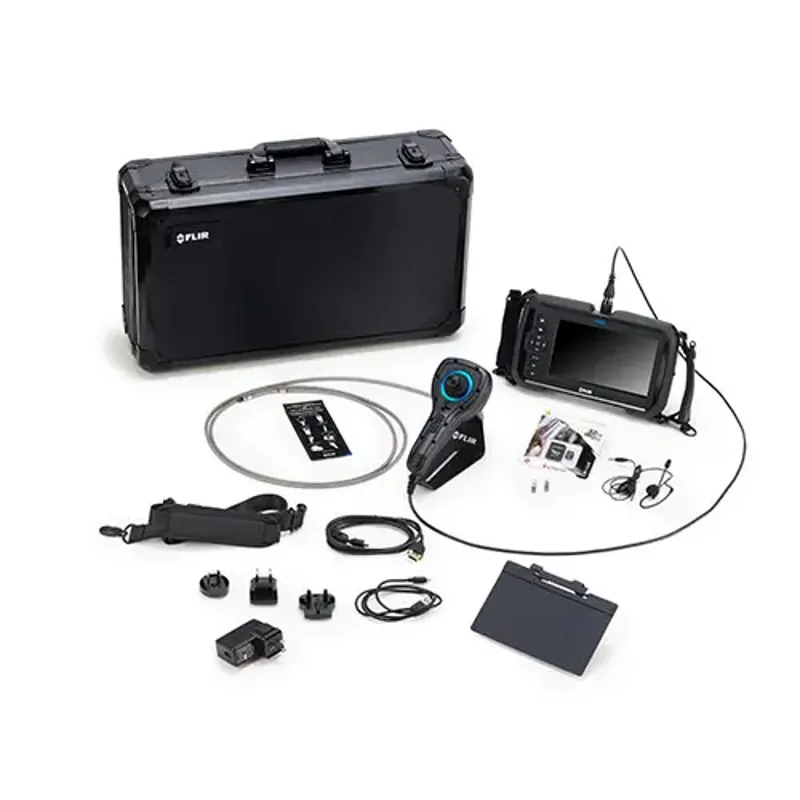

The Teledyne FLIR VS80-KIT-4 High-Performance Rugged Videoscope Kit is engineered for demanding inspection environments, offering professional-grade visual assessment through the versatile V80 videoscope display. This system is perfect for inspecting areas that are difficult or unsafe to access, thanks to its included 6.0mm x 2m 4-way articulation probe and IP67 waterproof camera tip.
Designed for industrial, HVAC/R, automotive, and building inspections, the VS80-KIT-4 enables users to maneuver the camera into tight spaces and view vivid, detailed images on a large, 7-inch touchscreen. With features like side-by-side image comparison, long battery life, and external video output, this kit ensures precise diagnostics and streamlined reporting with FLIR Thermal Studio or your preferred software.
What's Included:
- 1 - V80 High-Performance Rugged Videoscope Touchscreen Display, 1024 x 600, 7 in.
- 1 - VS80A4-60-2RM 4-Way Articulating Camera Probe, 6mm x 2m
- 1 - Neck Strap
- 1 - Hand Straps
- 1 - Audio Headset
- 1 - Removable/Retractable Sun Visor
- 1 - Power Adapter with AC Plugs (for US, UK, EU, AUS)
- 1 - Heavy-Duty Shipping/Carrying Case
- 1 - 32 GB Micro SD Memory Card
- 1 - USB C to USB A Cable
- 1 - Micro HDMI to HDMI Video Cable
- 1 - User Manual
Features
4-Way Articulation Probe
Navigate complex inspection areas with the included 6.0mm x 2m 4-way articulating probe for detailed visual access.
Large 7-Inch Display
Side-by-side live and saved image comparisons are easy with the spacious, high-resolution touchscreen interface.
Extended Battery Life
Perform inspections all day with over 8 hours of battery runtime on a single charge.
Clear Visual Depth
Get detailed imagery from 10mm to infinity with excellent depth of field on the probe camera.
Hands-Free Operation
Use the built-in kickstand, tripod mount, or neck strap to keep the screen steady while maneuvering the probe.
Rugged Design
Display is drop-rated to 2 meters and splashproof (IP54); probe tips are fully waterproof (IP67).
Sunlight-Readable
Attach the included sun visor for easy screen visibility in bright conditions.
HDMI Output
Stream live video to external monitors via HDMI for team-based assessments.
High-Resolution Capture
Record up to 1280 x 720 HD still images and video with audio support.
Annotation Tools
Add voice notes over videos and text notes on images for richer documentation.
Effortless Reporting
Generate detailed reports quickly using FLIR Thermal Studio or your preferred platform.
What's Included
Included with Your Purchase:
- 1 - V80 High-Performance Rugged Videoscope Touchscreen Display, 1024 x 600, 7 in.
- 1 - VS80A4-60-2RM 4-Way Articulating Camera Probe, 6mm x 2m
- 1 - Neck Strap
- 1 - Hand Straps
- 1 - Audio Headset
- 1 - Removable/Retractable Sun Visor
- 1 - Power Adapter with AC Plugs (for US, UK, EU, AUS)
- 1 - Heavy-Duty Shipping/Carrying Case
- 1 - 32 GB Micro SD Memory Card
- 1 - USB C to USB A Cable
- 1 - Micro HDMI to HDMI Video Cable
- 1 - User Manual
Specifications
- Display Resolution: 1024 x 600 pixels
- Display Size: 7 inches
- Probe Size: 6.0mm diameter x 2m length
- Articulation: 4-way
- Battery Life: Over 8 hours
- Still Image/Video Resolution: Up to 1280 x 720 HD
- Depth of Field: 10mm to infinity
- Display Rating: Drop-tested to 2m, IP54 rated
- Probe Tip Rating: IP67 waterproof
- Video Output: Micro HDMI
- Storage: 32 GB microSD card included
FAQ
Q: How long can the device run on a single charge?
A: The VS80 can operate for over 8 hours without needing a recharge.
Q: Can I use this outdoors in bright sunlight?
A: Yes, it includes a removable sun visor to enhance screen visibility in bright environments.
Q: What is the maximum image quality it can capture?
A: It captures HD stills and video at resolutions up to 1280 x 720.
Q: Is the probe waterproof?
A: Yes, the probe tips are IP67 rated for full waterproofing.
Q: Can I stream video to another screen?
A: Absolutely, the unit features an HDMI output for live external video display.
Resources
Documents:
- Teledyne FLIR VS80-KIT-4 Datasheet
