The Teledyne FLIR VS80-KIT-6 High-Performance Rugged Videoscope Kit delivers professional-grade inspection capability with the versatile V80 touchscreen display and a 5.5 mm x 1 m HD camera probe. Built for demanding environments, the system enables users to access and examine hard-to-reach or hazardous areas with precision and clarity. With waterproof camera tips, a large 7-inch high-resolution display, and a rugged housing, the VS80 is ideal for industrial maintenance, HVAC/R, building diagnostics, and automotive inspections.

The display supports side-by-side image comparisons, HDMI output for external viewing, and voice annotation for efficient documentation. Its long-lasting battery offers over 8 hours of runtime, while its IP54/IP67 protection ensures durability in harsh environments. Integrated features like a kickstand, neck strap, and sun visor make the VS80 practical for both indoor and outdoor use. Seamlessly view, transfer, and share captured media via the FLIR Tools Mobile app.

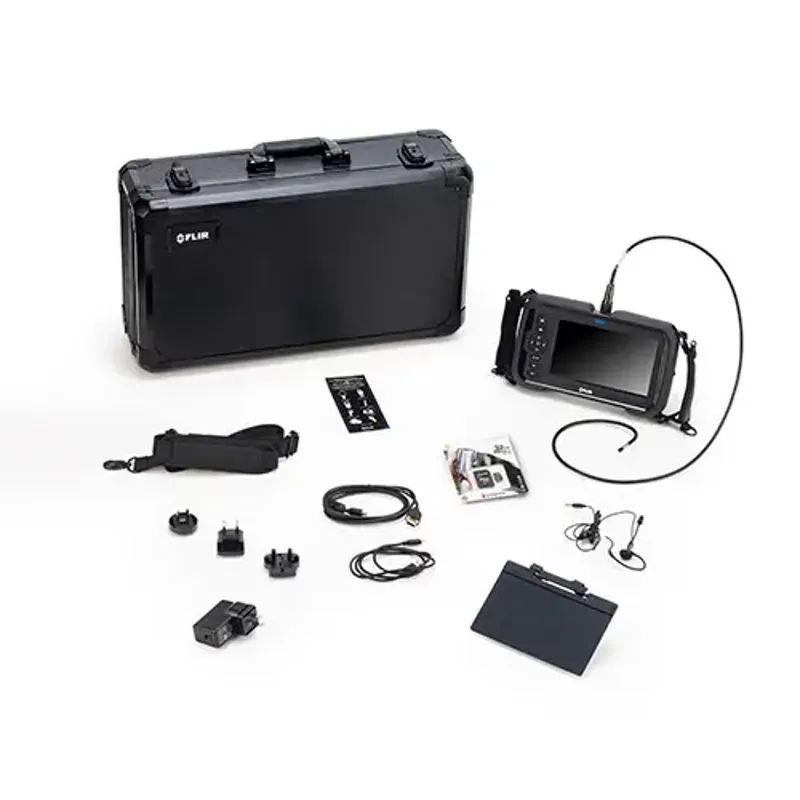

What's Included:

• 1 - V80 High-Performance Rugged Videoscope Touchscreen Display, 1024 x 600, 7 in.
• 1 - VS80CHD-55-1RM HD Camera Probe, 5.5mm x 1m
• 1 - Neck Strap
• 1 - Hand Straps
• 1 - Audio Headset
• 1 - Removable/Retractable Sun Visor
• 1 - Power Adapter with AC Plugs (for US, UK, EU, AUS)
• 1 - Heavy-Duty Shipping/Carrying Case
• 1 - 32 GB Micro SD Memory Card
• 1 - USB C to USB A Cable
• 1 - Micro HDMI to HDMI Video Cable
• 1 - User Manual

Features

HD Inspection Capability
Kit includes a 5.5 mm x 1 m HD probe with a waterproof IP67-rated tip for high-quality visual inspections in tight, wet, or confined spaces.

Large Touchscreen Display
Features a 7-inch screen with 1024 x 600 resolution, allowing side-by-side comparison of live and saved images for detailed evaluations.

Extended Battery Life
Operates for over 8 hours on a single charge, ensuring extended field use without the need for recharging.

Flexible Viewing Options
Offers 10 mm to infinity visual depth of field and supports HDMI output to display live video on external monitors.

Hands-Free Operation
Display includes a kickstand, neck strap, and tripod mount so users can manipulate the probe while viewing the screen.

Built for Durability
Rugged design with a 2 m drop rating and IP54 splashproof rating on the screen, ensuring reliability in demanding environments.

Outdoor Usability
Comes with a sun visor for improved screen visibility in bright light or outdoor conditions.

Comprehensive Media Capture
Captures HD still images and videos up to 1280 x 720 resolution, with optional voice annotations and text notes.

Efficient Reporting Tools
Use FLIR Thermal Studio or other reporting software to generate detailed reports and easily share findings with teams.

What's Included

Included with Your Purchase:

• 1 - V80 High-Performance Rugged Videoscope Touchscreen Display, 1024 x 600, 7 in.
• 1 - VS80CHD-55-1RM HD Camera Probe, 5.5mm x 1m
• 1 - Neck Strap
• 1 - Hand Straps
• 1 - Audio Headset
• 1 - Removable/Retractable Sun Visor
• 1 - Power Adapter with AC Plugs (for US, UK, EU, AUS)
• 1 - Heavy-Duty Shipping/Carrying Case
• 1 - 32 GB Micro SD Memory Card
• 1 - USB C to USB A Cable
• 1 - Micro HDMI to HDMI Video Cable
• 1 - User Manual

Specifications

• Display Resolution: 1024 x 600
• Display Size: 7 inches
• Probe Dimensions: 5.5 mm diameter x 1 m length
• Visual Depth of Field: 10 mm to infinity
• Still Image Resolution: Up to 1280 x 720
• Video Resolution: Up to 1280 x 720
• Display Protection Rating: IP54
• Camera Probe Protection Rating: IP67
• Drop Rating: Withstands drops up to 2 meters
• Battery Life: 8 hours
• HDMI Output: Yes
• Connectivity: USB-C, Micro HDMI, Micro SD

FAQ

Q: Can I view live images on an external monitor?
A: Yes, the VS80 supports HDMI output for live video display on external screens.

Q: How long does the battery last?
A: The unit provides over 8 hours of continuous operation on a full charge.

Q: Is the camera probe waterproof?
A: Yes, the probe has an IP67 rating, making it suitable for wet environments.

Q: What reporting tools are supported?
A: The system works with FLIR Thermal Studio and other preferred reporting software for creating inspection reports.

Q: Can I annotate my videos?
A: Yes, the VS80 allows you to record voice annotations and add text notes to your saved media.

Resources

Documents:

• Teledyne FLIR VS80-KIT-6 Datasheet
