The Teledyne FLIR VS80-KIT-2 High-Performance Rugged Videoscope Kit features the professional-grade V80 display, designed for inspecting hard-to-access or hazardous areas. Equipped with a 4.5mm x 1m 2-way articulation camera probe, this kit provides high-definition visibility and flexible maneuvering in tight spaces. The 7-inch touchscreen delivers sharp image quality and supports simultaneous viewing of live and stored images, enhancing inspection accuracy.
With an IP67-rated probe tip and IP54-rated display, the VS80-KIT-2 is built to endure tough environments, including drops and splashes. It operates for more than 8 hours on a single charge, making it ideal for extended field use. Additional features such as hands-free accessories, HDMI output, and wireless sharing via FLIR Tools Mobile app ensure professional performance and streamlined documentation.

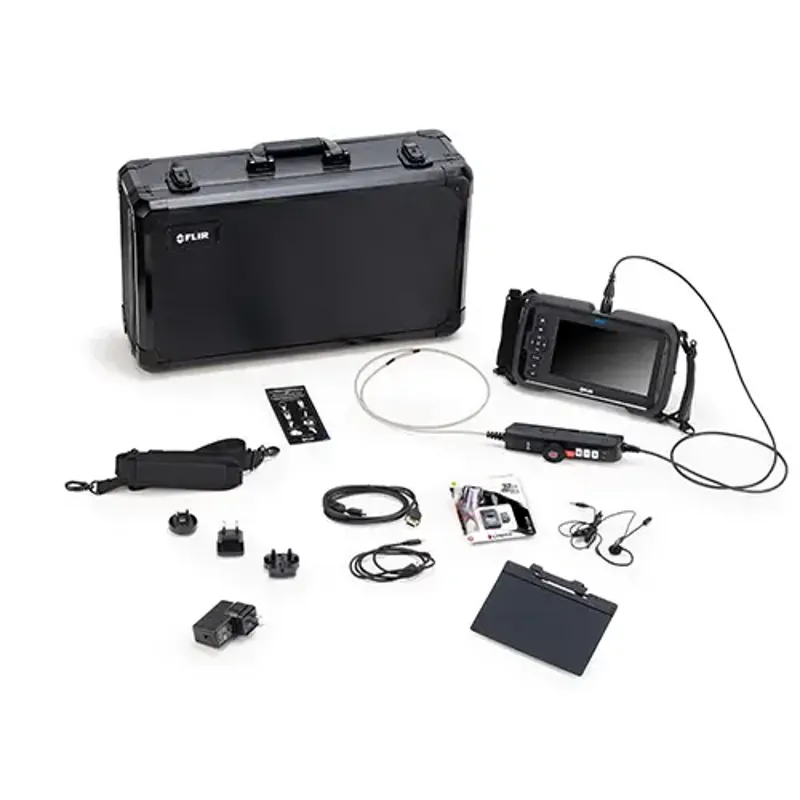

What's Included:
- 1 - V80 High-Performance Rugged Videoscope Touchscreen Display, 1024 x 600, 7 in.
- 1 - VS80A2-45-1RM 2-Way Articulating Camera Probe, 4.5mm x 1m
- 1 - Neck Strap
- 1 - Hand Straps
- 1 - Audio Headset
- 1 - Removable/Retractable Sun Visor
- 1 - Power Adapter with AC Plugs (for US, UK, EU, AUS)
- 1 - Heavy-Duty Shipping/Carrying Case
- 1 - 32 GB Micro SD Memory Card
- 1 - USB C to USB A Cable
- 1 - Micro HDMI to HDMI Video Cable
- 1 - User Manual
Features
2-Way Articulation Probe
Includes a 4.5mm x 1m probe that bends in two directions, enabling precise control in confined inspection areas.
Large Touchscreen Display
7-inch, 1024 x 600 resolution screen allows side-by-side comparison of live and saved images for better diagnostic accuracy.
Extended Battery Life
Operates for more than 8 hours on a full charge, supporting uninterrupted inspection tasks throughout the workday.
Hands-Free Viewing Setup
Includes kickstand, neck strap, and tripod mount to free the user’s hands for maneuvering the probe.
Durable and Weather-Resistant
Display is splashproof (IP54) and drop-tested to 2m, while the probe tips are fully waterproof (IP67).
Outdoor Visibility Enhancements
Includes a removable sun visor for improved screen visibility in bright environments.
HD Video and Image Capture
Records up to 1280 x 720 resolution stills and video, with audio and voice annotation capabilities.
Live Video Output
HDMI output allows connection to external monitors for live inspection viewing.
Efficient Reporting Tools
Compatible with FLIR Thermal Studio and other software for fast report generation and sharing.
What's Included
Included with Your Purchase:
- 1 - V80 High-Performance Rugged Videoscope Touchscreen Display, 1024 x 600, 7 in.
- 1 - VS80A2-45-1RM 2-Way Articulating Camera Probe, 4.5mm x 1m
- 1 - Neck Strap
- 1 - Hand Straps
- 1 - Audio Headset
- 1 - Removable/Retractable Sun Visor
- 1 - Power Adapter with AC Plugs (for US, UK, EU, AUS)
- 1 - Heavy-Duty Shipping/Carrying Case
- 1 - 32 GB Micro SD Memory Card
- 1 - USB C to USB A Cable
- 1 - Micro HDMI to HDMI Video Cable
- 1 - User Manual
Specifications
- Display Size: 7 inches
- Display Resolution: 1024 x 600
- Probe Diameter: 4.5 mm
- Probe Length: 1 meter
- Articulation: 2-Way
- Depth of Field: 10 mm to infinity
- Image/Video Resolution: Up to 1280 x 720
- Battery Life: 8 hours
- Protection Rating (Display): IP54
- Protection Rating (Probe Tip): IP67
- Drop Resistance: Up to 2 meters
FAQ
Q: How long can I use the VS80 on a full battery?
A: The device can operate for more than 8 hours without recharging.
Q: Can I use the VS80 outdoors?
A: Yes, it comes with a sun visor to help with screen visibility in bright environments.
Q: Is the probe waterproof?
A: Yes, the probe tip is IP67-rated for waterproofing.
Q: Can I connect the VS80 to an external display?
A: Yes, it includes an HDMI output for viewing live video on other screens.
Q: Does it support voice notes or annotations?
A: Yes, you can record voice annotations and add text notes to saved images.
Resources
Documents:
- Teledyne FLIR VS80-KIT-2 Datasheet
