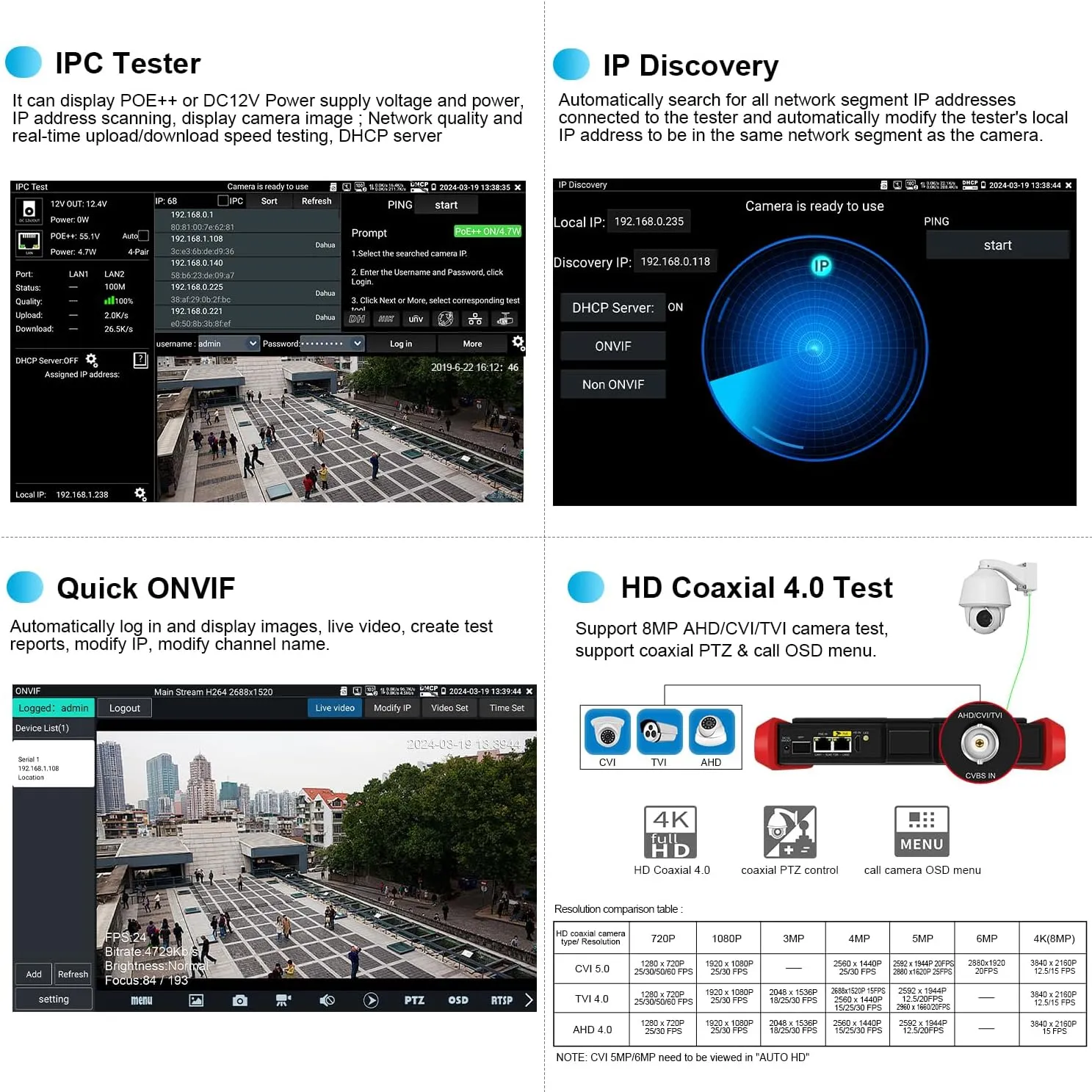

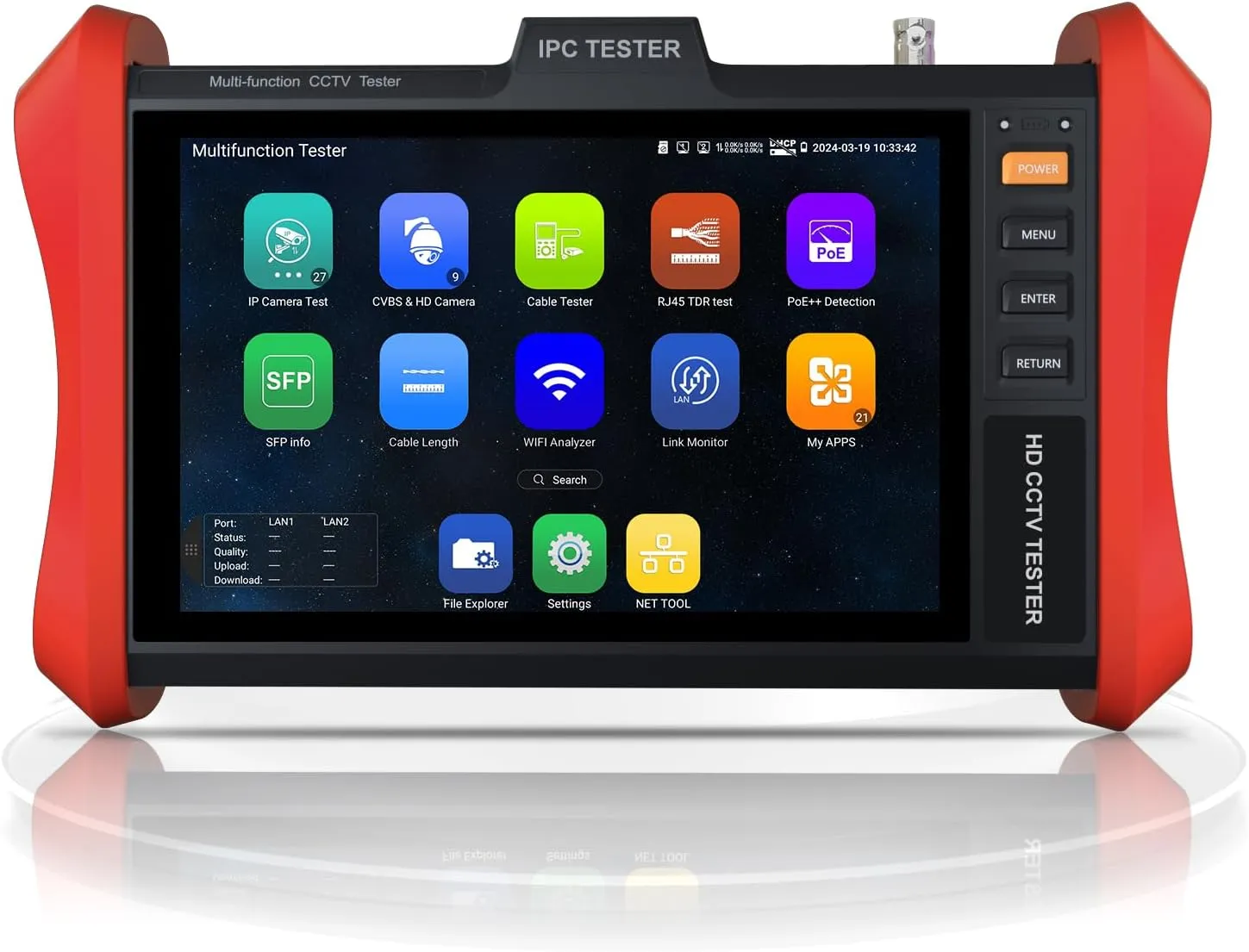

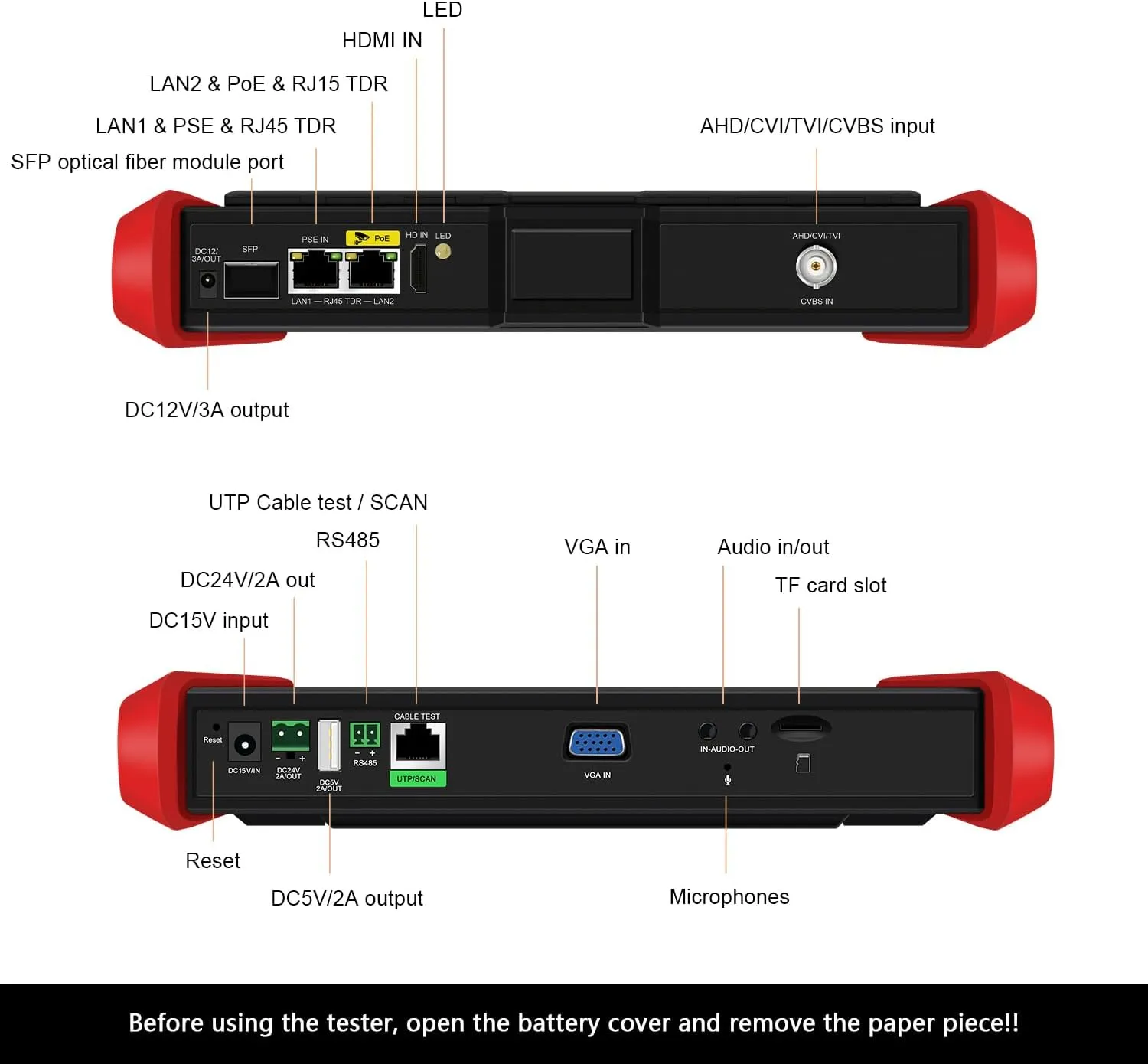

• [ IP Analog Camera Tester ] WANLUTECH IP camera tester with PoE, it support max 90W POE power output, temporarily powers the high-power PTZ camera or other devices supported by the IEEE 802.3af/at/bt standard protocol. DC15V power intput. It has 8'' touchscreen, 1920x1200 resolution. It support to test max 4K 12MP IP cameras, support CVBS analog camera test. The CCTV tester supports batch activation of DH, Hik cameras and modification of IP addresses, passwords, etc. Support IPC Test/IP Discovery/Rapid Video/RTSP Play /Quick OVIF/Hik DH test tool/Client APK. It has a gigabit SFP optical fiber module port, support insert SFP optical fiber module, for optical fiber network testing
• [ AHD TVI CVI Camera Tester ] WANLUTECH CCTV camera tester supports to test max 8MP AHD/TVI/CVI/CVBS camera. Using "AUTO HD" app can automatically recognize AHD CVI TVI CVBS cameras and display resolution and frame rate on the screen, supports UTC control & call OSD menu, menu settings, screenshot, video recording, video playback, etc
• [ Cable Tester ] RJ45 Cable TDR Test: it can test cable pair status, length (up to 180 meters), attenuation, reflectivity, impedance, skew. UTP Cable Tester: test UTP cable connection status and display on the screen, support detect the near-end, mid-end and far-end fault point of the RJ45 cable plug. Cable Length Test: Measure the breakpoint position of (open circuit status) BNC cables, RJ45 network cables, RJ11 cables, test length max 3000 meters
• [ Multifunction CCTV Monitor Tester ] RJ45 Dual Gigabit Ethernet ports, 10/100/1000Mbps adaptive, HDMI in, VGA in, Audio I/O, RS485, WiFi analyzer. Network Tools: IP scan, PING test, PPPOE, trace route, link monitor, DHCP server, port flashing, etc. PoE Detection: measurement POE switch or PSE power supply voltage and cable connection status. Power Management: check real-time voltage and power of POE, DC12V, DC24V power output and PSE input, DC15V power input
• [ PLEASE NOTE ] There is a paper piece isolating the battery. Before using the tester, open the battery cover and remove the paper sheet. We are the manufacturer. Any questions, please let us know, We'll get back to you within 12 hours
